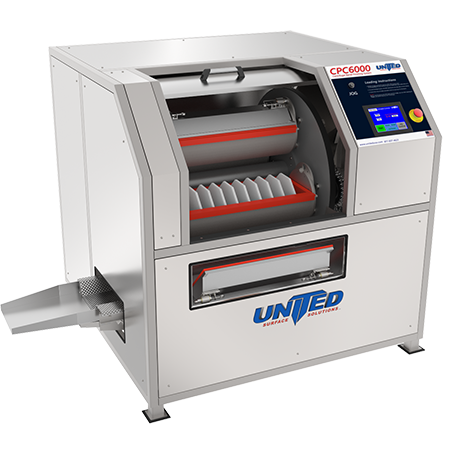

CPC6000 Centrifugal Barrel
Large, Robust and Powerful - 6.0 CU FT
The CPC6000 is United's newest system available. It combines the simple operation of United's other machines while offering unmatched power. Parts as long as 30" can be processed with ease and precision. Each barrel can be divided into as many as 10 compartments, providing the versatility to process a wide variety of parts. The CPC6000 can be equipped with our automated media and compound fill system as well as United's advanced media elevator.
STANDARD FEATURES
- Drive System in the CPC6000 is powerful and robust. It features United's signature butterfly chain design. Controlled with the same CPC system as all United machines, processes range from heavy material removal to delicate surface refinement.
- Touchscreen Controls with user friendly with process storage capabilities and process countdown timer.
- Safety Controls including two-handed jogging, E-Stop and interlocking access door.
- Variable Speed up to 350 RPM, is gentle on delicate parts and provides for process versatility.
- Removable Liners allows for fast loading and unloading and allows for quick liner replacement. An optional second set will allow operator to separate parts while the machine is processing another batch.
- Stainless Steel Construction for easy cleaning and durability..
- Removable Body Panels for ease of maintenance
- Cam Barrel Tops that allow for tool-free removal, resulting in less time to load or unload.
- WARRANTY: Up to 3 years based on component.

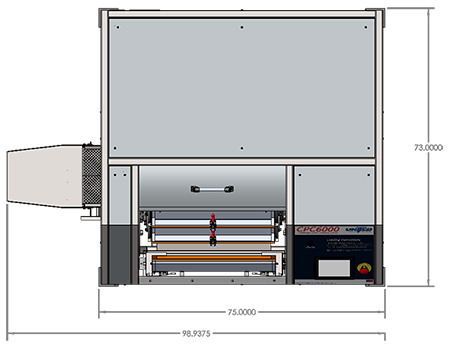

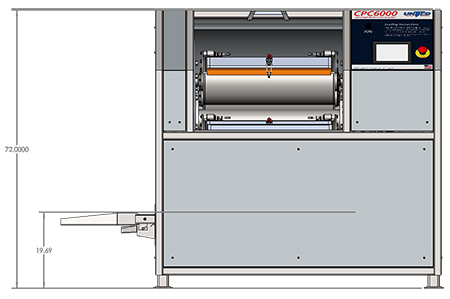

CPC6000 Specifications
