CPC1000 Centrifugal Barrel
Small, Economical and Powerful - 1.0 CU FT
The CPC1000 is the most economical deburring system available. Gone are the long process times of tumblers and vibratory finishers. With its 1 cu.ft. capacity, the CPC1000 can reach speed in excess of 250RPM*, processing parts quickly and consistently. The system can deburr and finish parts up to 7" x 9.5". Equipped with United's exclusive PLC and Touchscreen control, precision finishes are at your fingertips. Processes can be stored and recalled for consistent results every time. Generates up to 27Gs.
STANDARD FEATURES
- Direct Drive System utilizes motorcycle chain for durability and performance. Removable panels make it simple to access all parts of the unit for maintenance. Its 1:1 ratio allows each barrel to retain its loading position, increasing productivity and ergonomics..
- Touchscreen Controls with user friendly with process storage capabilities and process countdown timer.
- Safety Controls including two-handed jogging, E-Stop and interlocking access door.
- Variable Speed up to 250 RPM, is gentle on delicate parts and provides for process versatility.
- Removable Barrels allows for fast loading and unloading and allows for quick liner replacement. An optional second set will allow operator to separate parts while the machine is processing another batch.
- Stainless Steel Construction for easy cleaning and durability..
- Removable Body Panels for ease of maintenance
- Cam Barrel Tops that allow for tool-free removal, resulting in less time to load or unload.
- Complies with ANSI/NFPA 70 and NFPA 79 Codes UL Approved
- WARRANTY: Up to 3 years based on component.

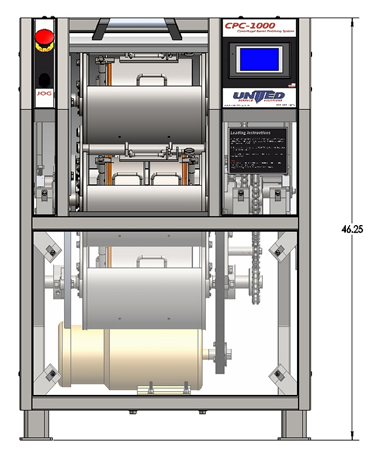

CPC1000 Specifications
Free Sample Processing
We will process your parts at no cost to determine the best equipment and process for your application
Print our Sample Process Form to Submit your parts
