CPC12000 Centrifugal Barrel
Large, Robust and Automated- 12.0 CU FT
The CPC12000 is the most advanced and automated system available. This unit has the largest capacity of any unit. Equipped with United's PLC and touchscreen, it is simple and powerful. Processes can be stored and recalled as needed. Parts as large as 45" can be processed with ease. It contains our automated media and compound fill system as well as United’s advanced media elevator. No heavy lifting required. Generates up to 12Gs
STANDARD FEATURES
- Direct Drive The CPC12000 deburring system features a fully enclosed drive system which is configured in United's butterfly design. The barrel drive system is composed of heavy duty chains and sprockets. Power locks ensure there is no slippage or premature wear on sprockets.capabilities and process countdown timer.
- Safety Controls including two-handed jogging, E-Stop and interlocking access door.
- Variable Speed up to 350 RPM, is gentle on delicate parts and provides for process versatility.
- Removable Liners allows for fast loading and unloading and allows for quick liner replacement. An optional second set will allow operator to separate parts while the machine is processing another batch.
- Stainless Steel Construction for easy cleaning and durability..
- Removable Body Panels for ease of maintenance
- Cam Barrel Tops that allow for tool-free removal, resulting in less time to load or unload.
- WARRANTY: Up to 3 years based on component.

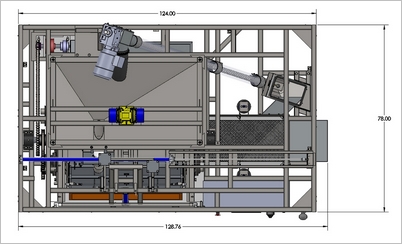

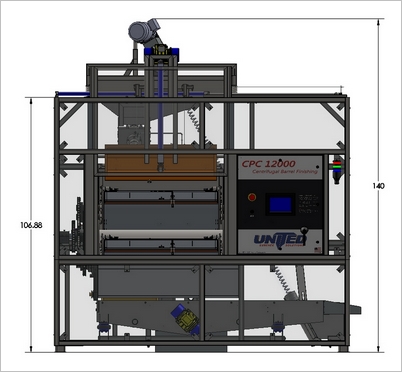

CPC12000 Specifications
Free Sample Processing
We will process your parts at no cost to determine the best equipment and process for your application
Print our Sample Process Form to Submit your parts
