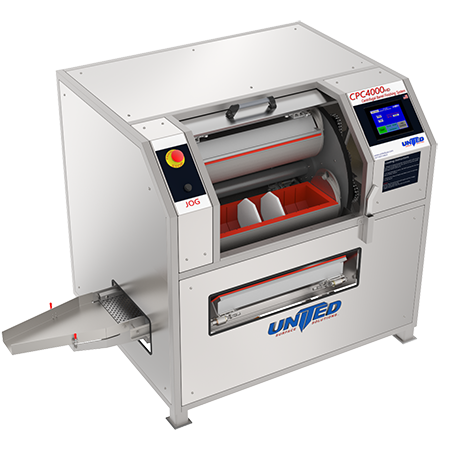

CPC4000 Centrifugal Barrel
Most Versatile and Automated - 4.0 CU FT
The CPC4000 is the most automated deburring machine in its class. It comes standard with a separating system that separates parts from media, a rinse system that washes both parts and media, and PLC touchscreen controls that can automatically load recipes into the system, eliminating operator error. For even more automation, see our CPC4000FA. The CPC4000 can process more parts per barrel than other similar volume high energy machines due to its configuration. Unlike competing 4 cubic foot centrifugal barrel tumblers, the barrels on the CPC4000 are smaller in diameter but longer, allowing the parts to spread inside the barrels instead of bunching up in the center. Therefore, more parts can be processed without part-on-part impingement. These barrels also have the ability to create up to ten individual compartments per barrel for processes where parts must be kept from touching each other. The same cannot be said for vibratory bowls or centrifugal disc finishers..
STANDARD FEATURES
- Drive System is configured in United's butterfly design and is composed of heavy duty chains to eliminate stretching. Power locks prevent slippage or premature wear on sprockets. United's drive system is durable and easy to maintain. All maintenance can be performed by removing a side panel with just 4 screws.
- Touchscreen Controls with user friendly with process storage capabilities and process countdown timer.
- Safety Controls including two-handed jogging, E-Stop and interlocking access door.
- Variable Speed up to 350 RPM, is gentle on delicate parts and provides for process versatility.
- Removable Liners allows for fast loading and unloading and allows for quick liner replacement. An optional second set will allow operator to separate parts while the machine is processing another batch.
- Stainless Steel Construction for easy cleaning and durability..
- Removable Body Panels for ease of maintenance
- Cam Barrel Tops that allow for tool-free removal, resulting in less time to load or unload.
- WARRANTY: Up to 3 years based on component.
CPC250 Specifications
Free Sample Processing
We will process your parts at no cost to determine the best equipment and process for your application
Print our Sample Process Form to Submit your parts
