Standard Features
- Removable Drums with Liners
- Variable Spped
- Process Timer
- Safety Interlock
- Barrel & Turret Jog Buttons
Free Sample Processing
We will process your parts at no cost to determine the best equipment and process for your application.
.

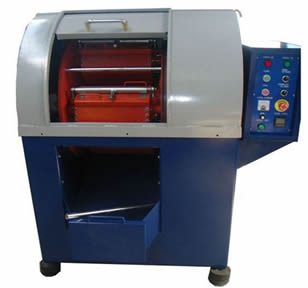

Rotec CB Series Centrifugal Barrel Finishers
Available in 2.0, 3.5, 5.5 and 7.0 Cubuc Foot Sizes
The Rotec CB Series Centrifugal Barrel machines are compact, economical high-energy machines used in a wide range of industrial applications from the most aggressive deburring and surface improvement to very intricate finishing of extremely delicate parts. Centrifugal Barrel machines greatly reduced cycle times when compared to conventional vibratory machines, and can be used wet or dry.
The four barrels are mounted on a large turret. Once media, parts and water are established, the rotation of the turret creates a substantial force within the barrels, which rotate in the opposite direction causing high-energy finishing with reduced cycle times. Barrels are driven via synchronous belt.
This machine features barrels with thick replaceable urethane liners and is constructed of a heavy-duty steel weldment with a durable powder-coated finish. A process timer, vary speed control and safety interlock are included as standard equipment.
Optional Features:
- Barrel Dividers
- Vibratory Separator
- Lift System for lids and heavy parts
- Work Stations
- Water Treatment Options
See brochure for detailed specifications.
